Cloudflare Integration

Summary

Currently any Runway services that have an external load balancer enabled are exposed to the Internet with DDoS protection provided by Google’s Cloud Armor.

If service owners would prefer to have their service fronted by Cloudflare, there is currently no self-service option and it would have to be configured out-of-band (for example: docs.runway.gitlab.com is configured in config-mgmt).

This blueprint outlines how Runway will implement Cloudflare integration so that service owners can enable their services to be protected by Cloudflare in a self-service fashion.

Motivation

Runway does not currently provide self-service functionality to have services fronted by Cloudflare and does not meet production readiness criteria for WAF.

Cloudflare is the CDN that sits in front of most of our production services, so the Runway platform should provide a frictionless experience for service owners to have their services fronted by Cloudflare.

Example Runway workload interested in this feature: GitLab Secrets Manager

Goals

  • To allow service owners enable their service to be fronted by Cloudflare.
  • To protect Runway endpoints with a standard set of WAF rules.

Non-goals

  • Ability to use a segregated Cloudflare zone for each Runway service instead of a shared zone.

    Rationale: security concerns from having a Cloudflare API token with the ability to create/destroy zones in the GitLab account (unable to lock it down to a certain pattern of zones).

  • Ability to customize WAF rules.

    Rationale: start with a standard set of WAF rules for all Runway workloads. This can be iterated on if some level of customization is required. If extensive customization is required for a service, it would likely warrant deploying an out-of-band isolated Cloudflare zone for the service.

  • Ability to set rate limits.

    Rationale: this is arguably a desirable feature but to keep the first iteration small, this will be added later once requirements are better understood.

Design

Shared Cloudflare Zone

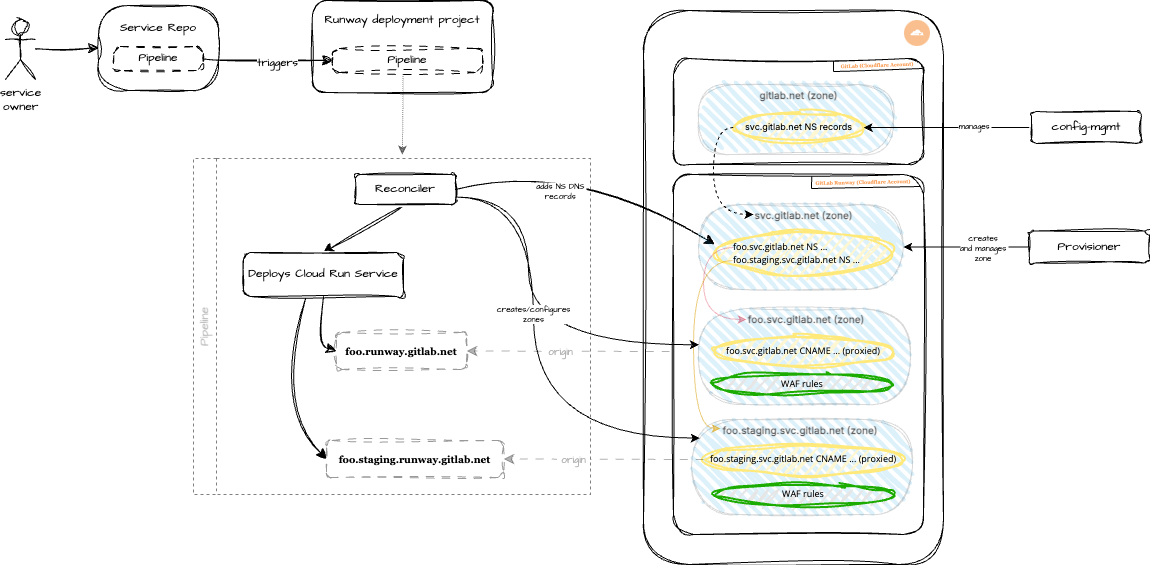

We will create a Cloudflare zone shared by all Runway workloads (staging and production):

svc.gitlab.net

This Cloudflare zone will be created in config-mgmt and imported into provisioner. The reason for not creating the zone directly in provisioner is that we would have to give provisioner fairly permissive Cloudflare API token access in order to manage zones. Instead, we let config-mgmt create the zone, which does have a permissive Cloudflare API token, and we import it into provisioner.

DNS endpoints:

  • Production: <service>.svc.gitlab.net
  • Staging: <service>.staging.svc.gitlab.net

The origin for these services will be their existing <service>[.staging].runway.gitlab.net.

Provisioner will configure any WAF rules that apply to all services. The WAF rules to be configured are TBD, but we will be working closely with the Foundations team to establish the rules.

Provisioning

Service owners will automatically get a Cloudflare protected endpoint for their workload if they have an external load balancer enabled. If needed, this can be disabled. For example: AI gateway would disable the Cloudflare protected endpoint as this service is routed via Cloud Connector so it does not need a .svc.gitlab.net endpoint.

TLS

Advanced Certificate Manager (paid add-on) will be enabled for svc.gitlab.net and we will use Total TLS to issue certificates for each proxied hostname.

Restricting inbound traffic

Reconciler will determine whether to restrict inbound access to their Runway workload from Cloudflare only based on the following flowchart:

Restricting Ingress

Notes

  • spec.network_policies.cloudflare is a runway.yml setting that takes highest precedence. If enabled, inbound traffic to the load balancer will be restricted to Cloudflare.
  • The logic behind “Service is part of the list of existing services?” is that we do not want to cause an outage for existing services by restricting inbound traffic as existing services are currently receiving traffic directly to the load balancer. Service owners will need to migrate traffic to their .svc.gitlab.net Cloudflare endpoint then enable spec.network_policies.cloudflare.

Adding proxied DNS records

Reconciler will use a Cloudflare API token with DNS read & write access to the svc.gitlab.net zone only for the purposes of managing proxied DNS records as shown in the following diagram:

Reconciler Proxied DNS Records Diagram

Observability

We will add a new instance of cloudflare-exporter to scrape the shared zone. Similar to Cloud Connector, we can leverage cloudflare_zone_firewall_events_count to alert on anomalies.
